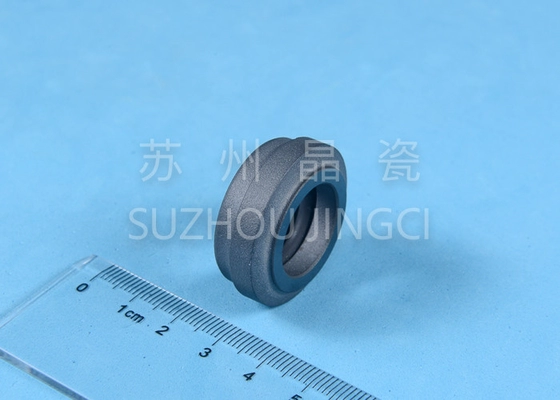

Alkali Resisting ZrO2 Al2O3 Ceramic Pump Seal
Product Description
| Name: | Zirconia Pump Seal | Material: | ZrO2 Al2O3 |
|---|---|---|---|
| Feature: | Alkali Resisting | Density: | Alumina 3.7-3.9g/cm^3; Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3 |
| Vickers Hardness: | Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV | Fracture Toughness: | Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2) |
| Compressive Strength: | Alumina ＞3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103)；Silicon Carbon 2200 (Mpa Psi*103) | Thermal Expending Coefficient: | Alumina 7.8-8.2 （1*10^-6/℃）；Silicon Carbon ≈4.5 （1*10^-6/℃） |
| High Light: | Al2O3 Ceramic Pump Seal, ZrO2 Ceramic Pump Seal, Al2O3 zirconia pump seal |
||
Ceramic Seal Slice Seal Plate Seal Disc ZrO2 Al2O3 Alumina Zirconia Mechanical Component
Introduction
Material: 99%Alumina ceramics
Density: 3.9-3.92g/cm3
Machining accuracy: ±0.02
Surface roughness: Ra 0.2
Performance: Wear resistance, acid and alkali resistance
Application: used in pumps and Mechanical seal
Detailed Product Description
| Name: | Zirconia Pump Seal | Material: | ZrO2 Al2O3 |
|---|---|---|---|
| Feature: | Alkali Resisting | Density: | Alumina 3.7-3.9g/cm^3; Zirconia ≈6g/cm^3; Silicon Carbon ≈3.14g/cm^3 |
| Vickers Hardness: | Alumina 1800-2000 HV; Zirconia ≈1300 HV; Silicon Carbon ≈2500HV | Fracture Toughness: | Alumina ≈5 (Mpa M1/2) ; Zirconia 7 (Mpa M1/2) |
| Compressive Strength: | Alumina ＞3200 (Mpa Psi*103); Zirconia ≈3900 (Mpa Psi*103)；Silicon Carbon 2200 (Mpa Psi*103) | Thermal Expending Coefficient: | Alumina 7.8-8.2 (1*10^-6/℃)；Silicon Carbon ≈4.5 (1*10^-6/℃) |
Properties
High hardness(88-96HRA), anti-abrasion, anti-corrosion, acidproof, alkali-resistance, thermal resistance
Application
Mechanical sealing in different kinds of machines,equipments,devices
