99% Alumina Ceramic Metering Pump , Ceramic Dosing Pump Anti - Corrosion
Product Description
| Material: | 99% Alumina, Zirconia, 316 Stainless Steel | Density: | 99% Alumina ≈3.9g/cm3; Zirconia ≈6.01g/cm3 |
|---|---|---|---|
| Water Absorption: | 0 | Ceramic Color: | White |
| Fracture Toughness: | 99% Alumina 6 Mpa M1/2; Zirconia 7 Mpa M1/2 | Vickers Hardness: | 99% Alumina ≈2000 HV; Circonia ≈1300 HV |
| Thermal Expanding Coefficient: | 99% Alumina ≈7.8 1x10-6/℃ | Volume Range: | 0.5-500ml |
| High Light: | ceramic piston pump, ceramic dosing pump |
||
Introduction
Ceramic Dosing Pump Ceramic Metering Pumps 99% Alumina Stainless Steel Zirconia Anti-Corrosion Medical Filling Line
Name: ceramic metering pump or ceramic dosing pump
Components: 99% alumina, or zirconia plus 316 stainless steel or SUS304
Properties: anti-corrosion,anti-friction, high filling accuracy, anti-acidity, anti-alkalinity, long life cycle
Volume range: 0.5ml-500ml
Application: pharmaceutical filling line, cosmetic filling line, beverage filling line, two component glue filling line, multi-component glue filling line,glue dispenser
Parameters
Roperties |
Units |
Al2O3 99% |
|
Mechanical |
Density |
g/cm3 |
3.9 |
Color |
-- |
Ivory or white |
|
Water Absorption |
% |
0 |
|
Vickers Hardness |
Gpa |
13 |
|
Flexural Strength (20°C) |
Mpa |
380 |
|
Compressive Strength (20°C) |
Mpa |
3000 |
|
Thermal |
Thermal Conductivity (20°C) |
W/m.K |
25~35 |
Thermal Shock Resistance (20°C) |
ΔT(C) |
200 |
|
Maximum Use Temperature |
°C |
1700 |
|
Electrical |
Volume Resistivity (25°C) |
Ω.cm |
>1014 |
Details

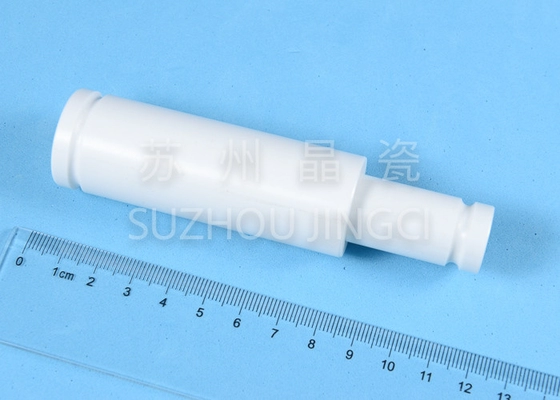

Alumina is a most commonly used ceramic material for pump components for its low cost and striking durability. Usually pistons made from 99% alumina ceramic are used as an important components in heating, dosing and high pressure pumps used in industrial, food and agricultural applications where corrosion and abrasion resistance are required and service longevity is needed.
About Us
Suzhou Jingci Super Hard Materials Co., Ltdhas been working on production of ceramic piston and piston for more than nearly 20 years and has rich experience in producing and quality control, and can produce pistons and plungers with diameters from 3mm to 240mm and Ra0.25 surface. Jingci has been an outstanding supplier for famous international customers like Karcher, Wilo and AR pump these years. Jingci is always developing new thoughts and ways on the production of ceramic parts so as to provide qualified and economic products for customers’ critical-service application.
